Description

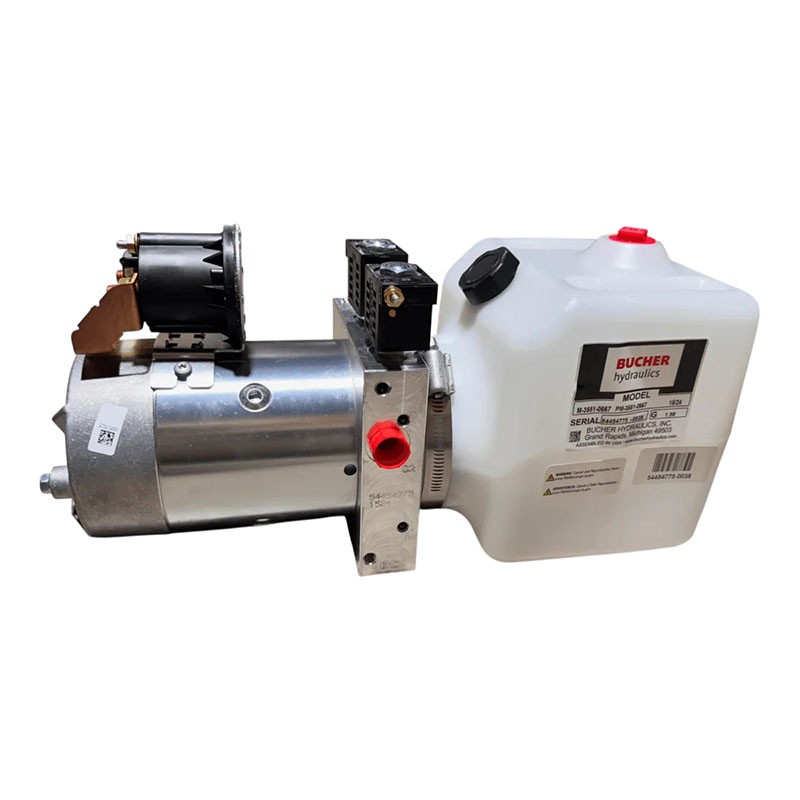

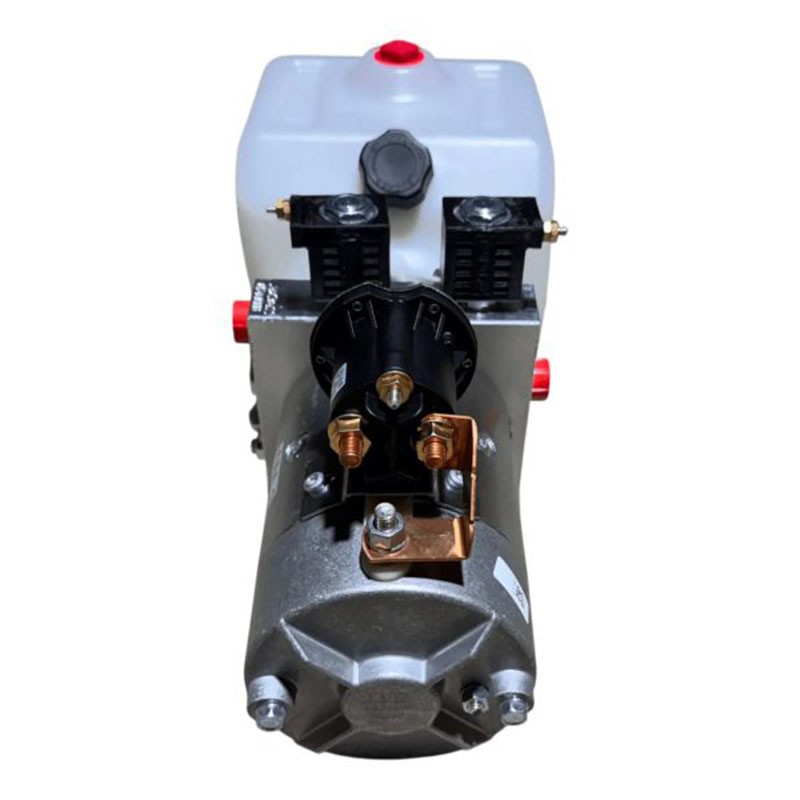

Maximize the performance of your hydraulic systems with the Bucher Double-Acting Hydraulic Power Unit, model PM-3551-0667, from Bucher Hydraulics, Inc. Designed for Power Up and Power Down operation, this compact and reliable hydraulic power unit delivers efficient performance for mobile and industrial applications. Featuring a 1.5-gallon high-density polyethylene reservoir, this double-acting pump provides steady power throughout the extension and retraction cycle, making it an ideal choice for demanding tasks.
Key Features
- Double-Acting Hydraulic Pump: Provides Power Up and Power Down functionality for precise control of double-acting cylinders
- 1.5-Gallon Poly Reservoir: Constructed from durable, corrosion-resistant high-density polyethylene with a red filler cap, offering 3 quarts of usable hydraulic fluid capacity
- 12V DC Motor: Ensures dependable performance in mobile environments, compatible with vehicle-based hydraulic systems
- High Operating Pressure: Delivers up to 2500 PSI, providing robust power for heavy-duty hydraulic applications
- Optimized Flow Rate: Maximum oil flow of 1.5 GPM ensures efficient fluid delivery
- Standard Hose Connections: Equipped with #6 SAE ports for secure and industry-standard fluid connections
- Durable Metal Components: Includes metal motor assembly and mounting bracket for enhanced durability and easy installation
- Wide Operating Temperature Range: Reliably operates in temperatures from -20°F to 130°F (-30°C to 55°C), suitable for diverse environments
- ATF Recommended: Use ATF (Automatic Transmission Fluid) for optimal performance and longevity
- Bucher Quality: Manufactured by Bucher Hydraulics, ISO 9001 certified, delivering exceptional reliability and low warranty return rates
Specifications
| Specification | Details |
|---|---|
| Operating Voltage | 12V DC |
| Operating Pressure | 2500 PSI |
| Max Oil Flow | 1.5 GPM |
| Reservoir Capacity | 3 Quarts (usable) / 1.5 Gallon total |
| Reservoir Material | High-Density Polyethylene |
| Hose Connections | #6 SAE |
| Recommended Fluid | ATF (Automatic Transmission Fluid) |
| Operating Temperature Range | -20°F to 130°F (-30°C to 55°C) |
Applications
- Dump Trailers: Provides reliable lifting capability
- Liftgates: Ensures smooth loading and unloading operations
- Hay Bale Spears / Agricultural Equipment: Ideal for farming tasks requiring precise hydraulic control
- Mobile Hydraulic Systems: Suitable for trucks, trailers, and other vehicle-mounted systems
- Industrial Equipment: Powers machinery requiring compact, high-pressure hydraulic power
Condition & Availability
Condition: Brand New
Availability: In Stock
Price: Contact us for quotation
